Interpolation, approximation and differential equations solvers

Contents

Problem 1

1.1 Problem definition

1.2 Solution of the problem

1.2.1 Linear interpolation

1.2.2 Method of least squares interpolation

1.2.3 Lagrange interpolating polynomial

1.2.4 Cubic spline interpolation

1.3 Results and discussion

1.3.1 Lagrange polynomial

Problem 2

2.1 Problem definition

2.2 Problem solution

2.2.1 Rectangular method

2.2.2 Trapezoidal rule

2.2.3 Simpson's rule

2.2.4 Gauss-Legendre method and Gauss-Chebyshev method

Problem 3

3.1 Problem definition

3.2 Problem solution

Problem 4

4.1 Problem definition

4.2 Problem solution

References

Problem 1

1.1 Problem definition

For the following data set, please discuss the possibility of obtaining a reasonable interpolated value at , , and via at least 4 different interpolation formulas you are have learned in this semester.

1.2 Solution of the problem

Interpolation is a method of constructing new data points within the range of a discrete set of known data points.

In engineering and science one often has a number of data points, as obtained by sampling or experimentation, and tries to construct a function which closely fits those data points. This is called curve fitting or regression analysis. Interpolation is a specific case of curve fitting, in which the function must go exactly through the data points.

First we have to plot data points, such plot provides better picture for analysis than data arrays

Following four interpolation methods will be discussed in order to solve the problem:

    Linear interpolation

    Method of least squares interpolation

    Lagrange interpolating polynomial

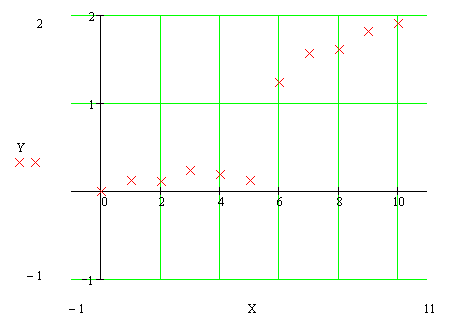

Fig 1. Initial data points

    Cubic spline interpolation

1.2.1 Linear interpolation

One of the simplest methods is linear interpolation (sometimes known as lerp). Generally, linear interpolation tales two data points, say and , and the interpolant is given by:

at the point

Linear interpolation is quick and easy, but it is not very precise/ Another disadvantage is that the interpolant is not differentiable at the point .

1.2.2 Method of least squares interpolation

The method of least squares is an alternative to interpolation for fitting a function to a set of points. Unlike interpolation, it does not require the fitted function to intersect each point. The method of least squares is probably best known for its use in statistical regression, but it is used in many contexts unrelated to statistics.

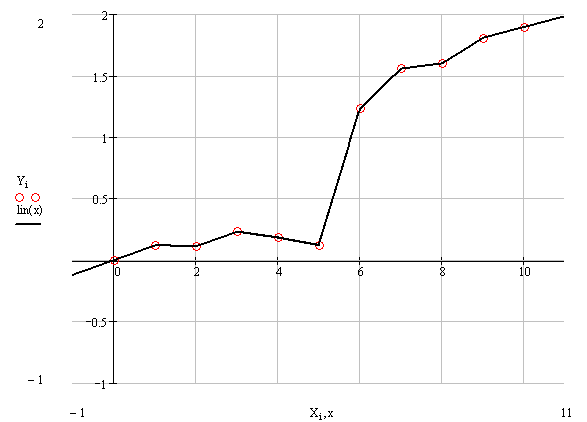

Fig 2. Plot of the data with linear interpolation superimposed

Generally, if we have data points, there is exactly one polynomial of degree at most going through all the data points. The interpolation error is proportional to the distance between the data points to the power n. Furthermore, the interpolant is a polynomial and thus infinitely differentiable. So, we see that polynomial interpolation solves all the problems of linear interpolation.

However, polynomial interpolation also has some disadvantages. Calculating the interpolating polynomial is computationaly expensive compared to linear interpolation. Furthermore, polynomial interpolation may not be so exact after all, especially at the end points. These disadvantages can be avoided by using spline interpolation.

Example of construction of polynomial by least square method

Data is given by the table:

Polynomial is given by the model:

In order to find the optimal parameters the following sub>stitution is being executed:

, , …,

Then:

The error function:

It is necessary to find parameters , which provide minimums to function :

It should be noted that the matrix must be nonsingular matrix.

For the given data points matrix become singular, and it makes impossible to construct polynomial with order, where - number of data points, so we will use polynomial

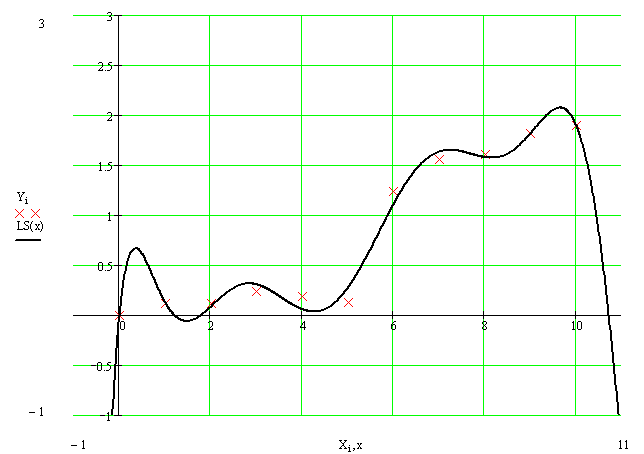

Fig 3. Plot of the data with polynomial interpolation superimposed

Because the polynomial is forced to intercept every point, it weaves up and down.

1.2.3 Lagrange interpolating polynomial

The Lagrange interpolating polynomial is the polynomial of degree that passes through the points , , …, and is given by:

,

Where

Written explicitly

When constructing interpolating polynomials, there is a tradeoff between having a better fit and having a smooth well-behaved fitting function. The more data points that are used in the interpolation, the higher the degree of the resulting polynomial, and therefore the greater oscillation it will exhibit between the data points. Therefore, a high-degree interpolation may be a poor predictor of the function between points, although the accuracy at the data points will be "perfect."

Fig 4. Plot of the data with Lagrange interpolating polynomial interpolation superimposed

One can see, that Lagrange polynomial has a lot of oscillations due to the high order if polynomial.

1.2.4 Cubic spline interpolation

Remember that linear interpolation uses a linear function for each of intervals . Spline interpolation uses low-degree polynomials in each of the intervals, and chooses the polynomial pieces such that they fit smoothly together. The resulting function is called a spline. For instance, the natural cubic spline is piecewise cubic and twice continuously differentiable. Furthermore, its second derivative is zero at the end points.

Like polynomial interpolation, spline interpolation incurs a smaller error than linear interpolation and the interpolant is smoother. However, the interpolant is easier to evaluate than the high-degree polynomials used in polynomial interpolation. It also does not suffer from Runge's phenomenon.

Fig 5. Plot of the data with Lagrange interpolating polynomial interpolation superimposed

It should be noted that cubic spline curve looks like metal ruler fixed in the nodal points, one can see that such interpolation method could not be used for modeling sudden data points jumps.

1.3 Results and discussion

The following results were obtained by employing described interpolation methods for the points ; ; :

Linear interpolation

Least squares interpolation

Lagrange polynomial

Cubic spline

Root mean square

0.148

0.209

0.015

0.14

0.146

0.678

0.664

0.612

0.641

0.649

1.569

1.649

1.479

1.562

1.566

Table 1. Results of interpolation by different methods in the given points.

In order to determine the best interpolation method for the current case should be constructed the table of deviation between interpolation results and root mean square, if number of interpolations methods increases then value of RMS become closer to the true value.

Linear interpolation

Least squares interpolation

Lagrange polynomial

Cubic spline

Average deviation from the RMS

Table 2. Table of Average deviation between average deviation and interpolation results.

One can see that cubic spline interpolation gives the best results among discussed methods, but it should be noted that sometimes cubic spline gives wrong interpolation, especially near the sudden function change. Also good interpolation results are provided by Linear interpolation method, but actually this method gives average values on each segment between values on it boundaries.

Problem 2

2.1 Problem definition

For the above mentioned data set, if you are asked to give the integration of between two ends and ? Please discuss the possibility accuracies of all the numerical integration formulas you have learned in this semester.

2.2 Problem solution

In numerical analysis, numerical integration constitutes a broad family of algorithms for calculating the numerical value of a definite integral.

There are several reasons for carrying out numerical integration. The integrand may be known only at certain points, such as obtained by sampling. Some embedded systems and other computer applications may need numerical integration for this reason.

A formula for the integrand may be known, but it may be difficult or impossible to find an antiderivative which is an elementary function. An example of such an integrand is , the antiderivative of which cannot be written in elementary form.

It may be possible to find an antiderivative symbolically, but it may be easier to compute a numerical approximation than to compute the antiderivative. That may be the case if the antiderivative is given as an infinite series or product, or if its evaluation requires a special function which is not available.

The following methods were described in this semester:

    Rectangular method

    Trapezoidal rule

    Simpson's rule

    Gauss-Legendre method

    Gauss-Chebyshev method

2.2.1 Rectangular method

The most straightforward way to approximate the area under a curve is to divide up the interval along the x-axis between and into a number of smaller intervals, each of the same length. For example, if we divide the interval into sub>intervals, then the width of each one will be given by:

The approximate area under the curve is then simply the sum of the areas of all the rectangles formed by our sub>intervals:

The summary approximation error for intervals with width is less than or equal to

Thus it is impossible to calculate maximum of the derivative function, we can estimate integration error like value:

2.2.2 Trapezoidal rule

Trapezoidal rule is a way to approximately calculate the definite integral. The trapezium rule works by approximating the region under the graph of the function by a trapezium and calculating its area. It follows that

To calculate this integral more accurately, one first splits the interval of integration into n smaller sub>intervals, and then applies the trapezium rule on each of them. One obtains the composite trapezium rule:

The summary approximation error for intervals with width is less than or equal to:

2.2.3 Simpson's rule

Simpson's rule is a method for numerical integration, the numerical approximation of definite integrals. Specifically, it is the following approximation:

If the interval of integration is in some sense "small", then Simpson's rule will provide an adequate approximation to the exact integral. By small, what we really mean is that the function being integrated is relatively smooth over the interval . For such a function, a smooth quadratic interpolant like the one used in Simpson's rule will give good results.

However, it is often the case that the function we are trying to integrate is not smooth over the interval. Typically, this means that either the function is highly oscillatory, or it lacks derivatives at certain points. In these cases, Simpson's rule may give very poor results. One common way of handling this problem is by breaking up the interval into a number of small sub>intervals. Simpson's rule is then applied to each sub>interval, with the results being summed to produce an approximation for the integral over the entire interval. This sort of approach is termed the composite Simpson's rule.

Suppose that the interval is split up in sub>intervals, with n an even number. Then, the composite Simpson's rule is given by

The error committed by the composite Simpson's rule is bounded (in absolute value) by

2.2.4 Gauss-Legendre method and Gauss-Chebyshev method

Since function values are given in fixed points then just two points Gauss-Legendre method can be applied. If is continuous on , then

The Gauss-Legendre rule G2( f ) has degree of precision . If , then

,

where

It should be noted that even in case of two points method we have to calculate values of the function in related to , , this values could be evaluated by linear interpolation (because it is necessary to avoid oscillations), so estimation of integration error become very complicated process, but this error will be less or equal to trapezoidal rule.

Mechanism of Gauss-Chebyshev method is almost the same like described above, and integration error will be almost the same, so there is no reason to use such methods for the current problem.

Problem 3

3.1 Problem definition

It is well known that the third order Runge-Kutta method is of the following form

,

Suppose that you are asked to derived a new third order Runge-Kutta method in the following from

,

Find determine the unknowns , , and so that your scheme is a third order Runge-Kutta method.

3.2 Problem solution

Generally Runge-Kutta method looks like:

,

where coefficients could be calculated by the scheme:

The error function:

Coefficients , , must be found to satisfy conditions , consequently we can suppose that for each order of Runge-Kutta scheme those coefficients are determined uniquely, it means that there are no two different third order schemes with different coefficients. Now it is necessary to prove statement.

For , :

;

;

; ;

;

; ;

Thus we have system of equations:

Some of coefficients are already predefined:

; ; ; ; ; ; ;

Obtained results show that Runge-Kutta scheme for every order is unique.

Problem 4

4.1 Problem definition

Discuss the stability problem of solving the ordinary equation , via the Euler explicit scheme , say . If , how to apply your stability restriction?

4.2 Problem solution

The Euler method is 1st order accurate. Given scheme could be rewritten in form of:

If has a magnitude greater than one then will tend to grow with increasing and may eventually dominate over the required solution. Hence the Euler method is stable only if or:

For the case mentioned above inequality looks like:

Last result shows that integration step mast be less or equal to .

For the case , for the iteration method coefficient looks like

As step is positive value of the function must be less then . There are two ways to define the best value of step , the firs one is to define maximum value of function on the integration area, another way is to use different for each value , where . So integration step is strongly depends on value of .

References

    J. C. Butcher, Numerical methods for ordinary differential equations, ISBN 0471967580

    George E. Forsythe, Michael A. Malcolm, and Cleve B. Moler. Computer Methods for Mathematical Computations. Englewood Cliffs, NJ: Prentice-Hall, 1977. (See Chapter 6.)

    Ernst Hairer, Syvert Paul Nørsett, and Gerhard Wanner. Solving ordinary differential equations I: Nonstiff problems, second edition. Berlin: Springer Verlag, 1993. ISBN 3-540-56670-8.

    William H. Press, Brian P. Flannery, Saul A. Teukolsky, William T. Vetterling. Numerical Recipes in C. Cambridge, UK: Cambridge University Press, 1988. (See Sections 16.1 and 16.2.)

    Kendall E. Atkinson. An Introduction to Numerical Analysis. John Wiley & Sons - 1989

    F. Cellier, E. Kofman. Continuous System Simulation. Springer Verlag, 2006. ISBN 0-387-26102-8.

    Gaussian Quadrature Rule of Integration - Notes, PPT, Matlab, Mathematica, Maple, Mathcad at Holistic Numerical Methods Institute

    Burden, Richard L.; J. Douglas Faires (2000). Numerical Analysis (7th Ed. ed.). Brooks/Cole. ISBN 0-534-38216-9.
